PLANET3-E Bosch Smart System Tuning Solutions

Specifically for Bosch Smart System.

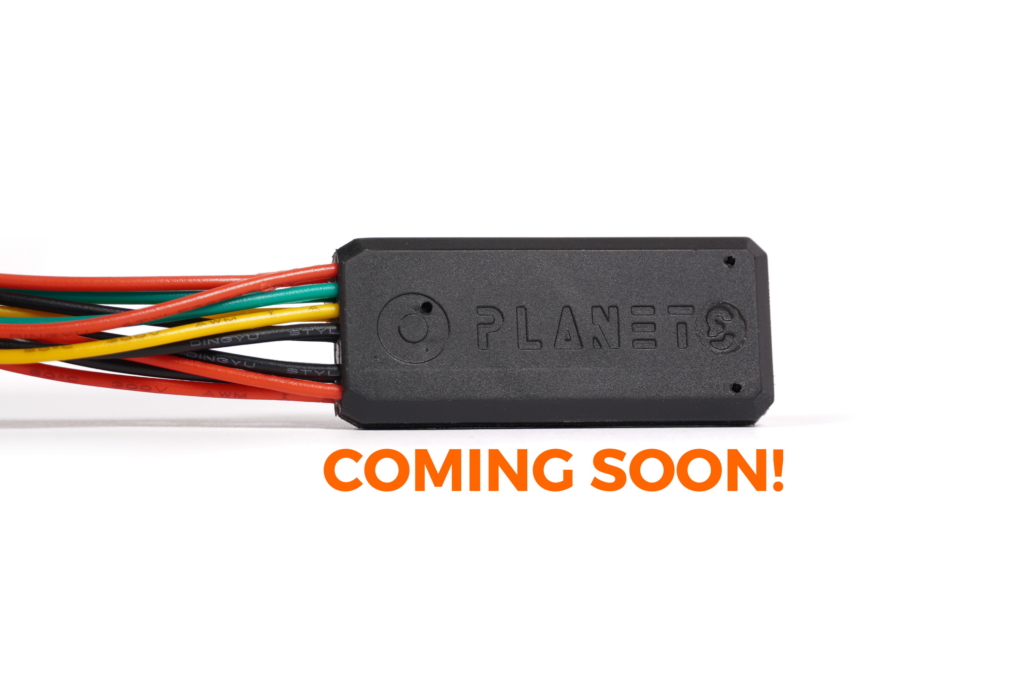

This is a chip version that plugs into the motor in between the speed sensor/display/motor (much like any other chip out there for Bosch and other systems). It also keeps the speed/distance readouts correct while the mechanical PLANET3 would show 3x less. It’s undetectable, updateable via Bluetooth and more future-proof. Uses original male connectors, while the female connectors that are made by PLANET3. Application for mobile phones is available for both Android and iPhone users. If you’re an iPhone user, PLANET3-E app is available on App Store here. The only difference between these Bosch powered (regarding the installation) e-bikes is the motor cover but it’s 99% the same procedure: take off the crank, unscrew the 3-4 screws, plug in and put everything back. I’d suggest not putting on the motor cover and crank back until you’ve tried powering on the bike and testing the functionality and setup of the PLANET3-E via the app.

As far as the initial setup goes, the only thing that I can’t know ahead of time is your wheel circumference (there is an algorithm that is supposed to measure this automatically, but it doesn’t work as reliably as I would like so for now we enter this value manually). So, when you power on the bike with the PLANET3-E, in the PLANET3 app you will connect to the chip, then go to the Tune menu and there you will see a button “Find my wheel size”, click it and wait a few seconds and it’ll find your wheel circumference. Default value is 2250mm but it can vary from 2000 (78.74 inches) to 2300 mm (90.55 inches). It is important that you verify this value against what’s in Mission Control. They need to be identical. Other than that, you’re good to go.
